Kwang Thai Motor » Products https://www.kwangthai.com Tue, 03 Dec 2013 05:27:21 +0000 en-US hourly 1 https://wordpress.org/?v=3.7.41 ไดสตาร์ท / Starter 28MT https://www.kwangthai.com/product/%e0%b9%84%e0%b8%94%e0%b8%aa%e0%b8%95%e0%b8%b2%e0%b8%a3%e0%b9%8c%e0%b8%97-starter-28mt/ https://www.kwangthai.com/product/%e0%b9%84%e0%b8%94%e0%b8%aa%e0%b8%95%e0%b8%b2%e0%b8%a3%e0%b9%8c%e0%b8%97-starter-28mt/#comments Tue, 05 Nov 2013 17:35:50 +0000 http://www.kwangthai.com/?post_type=product&p=71   ไดสตาร์ท / Starter  28MT Delco Remy 28MT™ Heavy Duty Starter The 28MT is a gear reduction starter       Specifications: Engine Type/Size: Diesel up to 6.5L / 397 cu in System Voltage: 12 or 24 Volts Rotation: Clockwise Output: 4.0 or 2.9kW Standard Mountings: SAE #1, SAE #3, Pad Mount Standard Pinions:   10-Tooth/10-12 Pitch, 10-Tooth/8-10 Pitch, 12-Tooth/8-10 Pitch, […]

The post ไดสตาร์ท / Starter 28MT appeared first on Kwang Thai Motor.

]]> 28MT



ไดสตาร์ท / Starter  28MT

Delco Remy 28MT™ Heavy Duty Starter
The 28MT is a gear reduction starter




Specifications:

Engine Type/Size: Diesel up to 6.5L / 397 cu in
System Voltage: 12 or 24 Volts
Rotation: Clockwise
Output: 4.0 or 2.9kW
Standard Mountings: SAE #1, SAE #3, Pad Mount
Standard Pinions:   10-Tooth/10-12 Pitch, 10-Tooth/8-10 Pitch, 12-Tooth/8-10 Pitch, 9-Tooth/Module 3
Weight: 18.5 lbs (8.4 kg)
Diameter: 3.5 in. (90mm)
Optional Jump Start Protection: Shield and solenoid cap available to meet SAE J1493 recommendations
Optional Wet Clutch Applications Available

Dimensions:



Additional Information:

The post ไดสตาร์ท / Starter 28MT appeared first on Kwang Thai Motor.

]]> https://www.kwangthai.com/product/%e0%b9%84%e0%b8%94%e0%b8%aa%e0%b8%95%e0%b8%b2%e0%b8%a3%e0%b9%8c%e0%b8%97-starter-28mt/feed/ 0 ไดสตาร์ท / Starter 37MT https://www.kwangthai.com/product/%e0%b9%84%e0%b8%94%e0%b8%aa%e0%b8%95%e0%b8%b2%e0%b8%a3%e0%b9%8c%e0%b8%97-starter-37mt/ https://www.kwangthai.com/product/%e0%b9%84%e0%b8%94%e0%b8%aa%e0%b8%95%e0%b8%b2%e0%b8%a3%e0%b9%8c%e0%b8%97-starter-37mt/#comments Tue, 05 Nov 2013 17:39:59 +0000 http://www.kwangthai.com/?post_type=product&p=72   ไดสตาร์ท / Starter  37MT Delco Remy 37MT Heavy Duty Starter       Specifications: Engine Type/Size: Diesel up to 8.3 L / 506 cu in System Voltage: 12 or 24 Volts Rotation: Clockwise or Counterclockwise Output: 4.6 or 7 kW Standard Mountings: SAE #1, SAE #3 Standard Pinions:   10-Tooth/8-10 Pitch, 12-Tooth/8-10 Pitch, 11-Tooth/Module 3 Weight: 50 lbs (22.7 kg) Drive […]

The post ไดสตาร์ท / Starter 37MT appeared first on Kwang Thai Motor.

]]> 37MT



ไดสตาร์ท / Starter  37MT

Delco Remy 37MT Heavy Duty Starter




Specifications:

Engine Type/Size: Diesel up to 8.3 L / 506 cu in
System Voltage: 12 or 24 Volts
Rotation: Clockwise or Counterclockwise
Output: 4.6 or 7 kW
Standard Mountings: SAE #1, SAE #3
Standard Pinions:   10-Tooth/8-10 Pitch, 12-Tooth/8-10 Pitch, 11-Tooth/Module 3
Weight: 50 lbs (22.7 kg)
Drive Design: Rotatable drive housing, positive shift
Optional Jump Start Protection: Shield and solenoid cap available to meet SAE J1493 recommendations
Optional Over Crank Protection: Prevents over cranking thermal damage, circuit breaker automatically resets after cooling

Dimensions:



Additional Information:

Installation Instructions
Service Parts



The post ไดสตาร์ท / Starter 37MT appeared first on Kwang Thai Motor.

]]> https://www.kwangthai.com/product/%e0%b9%84%e0%b8%94%e0%b8%aa%e0%b8%95%e0%b8%b2%e0%b8%a3%e0%b9%8c%e0%b8%97-starter-37mt/feed/ 0 ไดสตาร์ท / Starter 39MT https://www.kwangthai.com/product/%e0%b9%84%e0%b8%94%e0%b8%aa%e0%b8%95%e0%b8%b2%e0%b8%a3%e0%b9%8c%e0%b8%97-starter-39mt/ https://www.kwangthai.com/product/%e0%b9%84%e0%b8%94%e0%b8%aa%e0%b8%95%e0%b8%b2%e0%b8%a3%e0%b9%8c%e0%b8%97-starter-39mt/#comments Tue, 05 Nov 2013 17:44:11 +0000 http://www.kwangthai.com/?post_type=product&p=73   ไดสตาร์ท / Starter  39MT Delco Remy 39MT™ Heavy Duty Starter The 39MT™ is a gear reduction starter ideal for heavy duty truck and off highway applications. The drive has an electrical soft start that rotates the pinion for proper ring gear engagement before cranking, minimizing tooth abutment related damage. The sealed solid link solenoid eliminates contact […]

The post ไดสตาร์ท / Starter 39MT appeared first on Kwang Thai Motor.

]]> 39MT



ไดสตาร์ท / Starter  39MT

Delco Remy 39MT™ Heavy Duty Starter
The 39MT™ is a gear reduction starter ideal for heavy duty truck and off highway applications. The drive has an electrical soft start that rotates the pinion for proper ring gear engagement before cranking, minimizing tooth abutment related damage. The sealed solid link solenoid eliminates contact welding in low system voltage situations, providing enhanced reliability. Sealed noseless configuration minimizes debris accumulation and contamination reducing maintenance expense.



Specifications:

Engine Type/Size: Diesel up to 15 L / 915 cu in (12 V), 16 L / 976 cu in (24 V)
System Voltage: 12 or 24 Volts
Rotation: Clockwise
Output: 7.3 or 9.0kW
Standard Mountings: SAE #1, SAE #3
Standard Pinions:   11-Tooth/6-8 Pitch, 12-Tooth/8-10 Pitch, 12-Tooth/Module 3
Weight: 30.8 lbs (14 kg)
Optional Jump Start Protection: Shield and solenoid cap available to meet SAE J1493 recommendations
Optional Over Crank Protection (OCP): Prevents over cranking thermal damage, circuit breaker automatically resets after cooling

Dimensions:

Additional Information:

View Brochure
Installation Instructions
Service Parts

The post ไดสตาร์ท / Starter 39MT appeared first on Kwang Thai Motor.

]]> https://www.kwangthai.com/product/%e0%b9%84%e0%b8%94%e0%b8%aa%e0%b8%95%e0%b8%b2%e0%b8%a3%e0%b9%8c%e0%b8%97-starter-39mt/feed/ 0 ไดสตาร์ท / Starter 42MT https://www.kwangthai.com/product/%e0%b9%84%e0%b8%94%e0%b8%aa%e0%b8%95%e0%b8%b2%e0%b8%a3%e0%b9%8c%e0%b8%97-starter-42mt/ https://www.kwangthai.com/product/%e0%b9%84%e0%b8%94%e0%b8%aa%e0%b8%95%e0%b8%b2%e0%b8%a3%e0%b9%8c%e0%b8%97-starter-42mt/#comments Tue, 05 Nov 2013 17:47:15 +0000 http://www.kwangthai.com/?post_type=product&p=74   ไดสตาร์ท / Starter  42MT Delco Remy 42MT™ Heavy Duty Starter The 42MT™ is a straight drive style starter ideal for heavy duty truck and off highway applications.     Specifications: Engine Type/Size: Diesel up to 15 L / 900 cu in System Voltage: 12 or 24 Volts Rotation: Clockwise or Counterclockwise Output: 7.3 or 8.0 kW Standard Mountings: SAE […]

The post ไดสตาร์ท / Starter 42MT appeared first on Kwang Thai Motor.

]]> 42MT

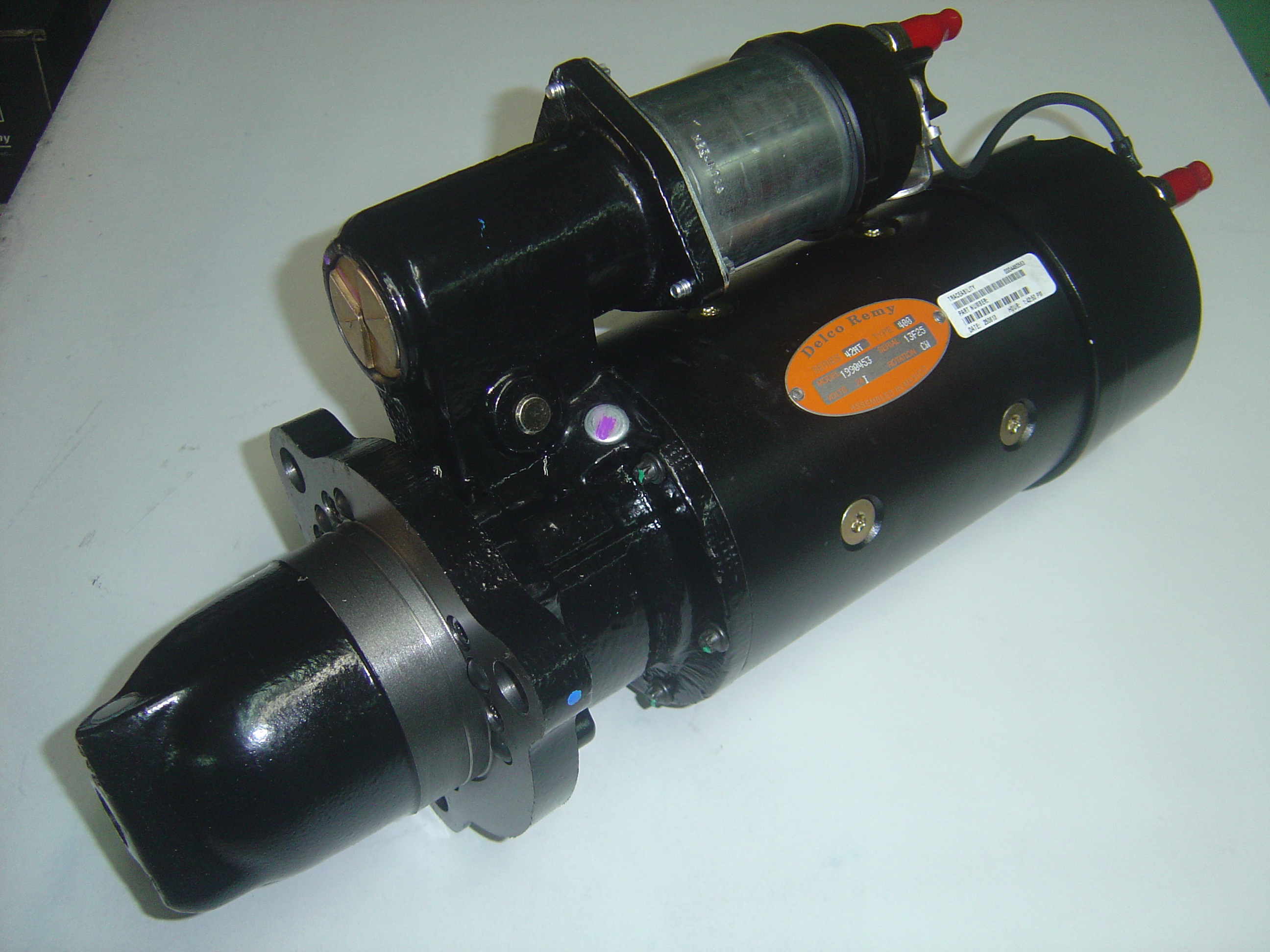

ไดสตาร์ท / Starter  42MT

Delco Remy 42MT™ Heavy Duty Starter
The 42MT™ is a straight drive style starter ideal for heavy duty truck and off highway applications.



Specifications:

Engine Type/Size: Diesel up to 15 L / 900 cu in
System Voltage: 12 or 24 Volts
Rotation: Clockwise or Counterclockwise
Output: 7.3 or 8.0 kW
Standard Mountings: SAE #1, SAE #3
Standard Pinions:   11-Tooth/6-8 Pitch, 12-Tooth/8-10 Pitch, 13-Tooth/8-10 pitch, 11-Tooth/Module 3, 12-Tooth/Module 3
Weight: 58 lbs (36.3 kg)
Drive Design: Rotatable drive housing, positive engagement, rubber shock absorber, 12 or 24 positions
Optional Jump Start Protection: Shield and solenoid cap available to meet SAE J1493 recommendations
Optional Over Crank Protection: Prevents over cranking thermal damage, circuit breaker automatically resets after cooling

Dimensions:



Additional Information:

The post ไดสตาร์ท / Starter 42MT appeared first on Kwang Thai Motor.

]]> https://www.kwangthai.com/product/%e0%b9%84%e0%b8%94%e0%b8%aa%e0%b8%95%e0%b8%b2%e0%b8%a3%e0%b9%8c%e0%b8%97-starter-42mt/feed/ 0 ไดสตาร์ท / Starter 50MT https://www.kwangthai.com/product/%e0%b9%84%e0%b8%94%e0%b8%aa%e0%b8%95%e0%b8%b2%e0%b8%a3%e0%b9%8c%e0%b8%97-starter-50mt/ https://www.kwangthai.com/product/%e0%b9%84%e0%b8%94%e0%b8%aa%e0%b8%95%e0%b8%b2%e0%b8%a3%e0%b9%8c%e0%b8%97-starter-50mt/#comments Tue, 05 Nov 2013 17:50:02 +0000 http://www.kwangthai.com/?post_type=product&p=75   ไดสตาร์ท / Starter  50MT Delco Remy 50MT™ Heavy Duty Starter Get a powerful and dependable start every time. The 50MT™ is a straight drive style starter ideal for off highway and locomotive applications.   Specifications: Engine Type/Size: Diesel up to 29.5 L / 1800 cu in System Voltage: 12, 24, 32, 64 Volts Rotation: Clockwise or Counterclockwise Output: 8.5, […]

The post ไดสตาร์ท / Starter 50MT appeared first on Kwang Thai Motor.

]]> 50MT

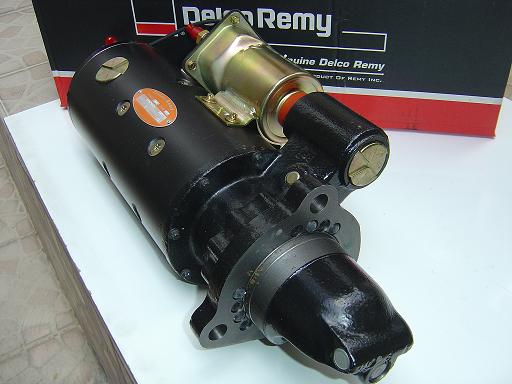

ไดสตาร์ท / Starter  50MT

Delco Remy 50MT™ Heavy Duty Starter
Get a powerful and dependable start every time. The 50MT™ is a straight drive style starter ideal for off highway and locomotive applications.


Specifications:

Engine Type/Size: Diesel up to 29.5 L / 1800 cu in
System Voltage: 12, 24, 32, 64 Volts
Rotation: Clockwise or Counterclockwise
Output: 8.5, 9, 13, 12kW
Standard Mountings: SAE #3
Standard Pinions:   11-Tooth/6-8 Pitch, 12-Tooth/8-10 Pitch, 12-Tooth/Module 3
Weight: 79 lbs (35.8 kg)
Drive Design:  Rotatable drive housing, positive engagement, rubber shock absorber
Optional Jump Start Protection: Shield and solenoid cap available to meet SAE J1493 recommendations

Dimensions:

 Additional Information:

The post ไดสตาร์ท / Starter 50MT appeared first on Kwang Thai Motor.

]]> https://www.kwangthai.com/product/%e0%b9%84%e0%b8%94%e0%b8%aa%e0%b8%95%e0%b8%b2%e0%b8%a3%e0%b9%8c%e0%b8%97-starter-50mt/feed/ 0 ไดสตาร์ท / Starter HOLDER https://www.kwangthai.com/product/%e0%b9%84%e0%b8%94%e0%b8%aa%e0%b8%95%e0%b8%b2%e0%b8%a3%e0%b9%8c%e0%b8%97-starter-holder/ https://www.kwangthai.com/product/%e0%b9%84%e0%b8%94%e0%b8%aa%e0%b8%95%e0%b8%b2%e0%b8%a3%e0%b9%8c%e0%b8%97-starter-holder/#comments Tue, 05 Nov 2013 17:59:55 +0000 http://www.kwangthai.com/?post_type=product&p=96   ไดสตาร์ท / Starter  HOLDER

The post ไดสตาร์ท / Starter HOLDER appeared first on Kwang Thai Motor.

]]> HOLDER

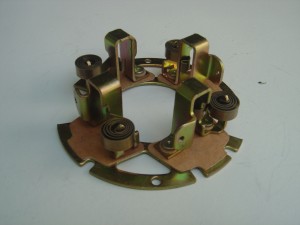

ไดสตาร์ท / Starter  HOLDER

The post ไดสตาร์ท / Starter HOLDER appeared first on Kwang Thai Motor.

]]> https://www.kwangthai.com/product/%e0%b9%84%e0%b8%94%e0%b8%aa%e0%b8%95%e0%b8%b2%e0%b8%a3%e0%b9%8c%e0%b8%97-starter-holder/feed/ 0 ไดสตาร์ท / Starter SOLENOID https://www.kwangthai.com/product/%e0%b9%84%e0%b8%94%e0%b8%aa%e0%b8%95%e0%b8%b2%e0%b8%a3%e0%b9%8c%e0%b8%97-starter-solenoid/ https://www.kwangthai.com/product/%e0%b9%84%e0%b8%94%e0%b8%aa%e0%b8%95%e0%b8%b2%e0%b8%a3%e0%b9%8c%e0%b8%97-starter-solenoid/#comments Tue, 05 Nov 2013 18:03:51 +0000 http://www.kwangthai.com/?post_type=product&p=97   ไดสตาร์ท / Starter  SOLENOID

The post ไดสตาร์ท / Starter SOLENOID appeared first on Kwang Thai Motor.

]]> SOLENOID



ไดสตาร์ท / Starter  SOLENOID

The post ไดสตาร์ท / Starter SOLENOID appeared first on Kwang Thai Motor.

]]> https://www.kwangthai.com/product/%e0%b9%84%e0%b8%94%e0%b8%aa%e0%b8%95%e0%b8%b2%e0%b8%a3%e0%b9%8c%e0%b8%97-starter-solenoid/feed/ 0
