Product Description

ไดชาร์ท / Alternator  24SI

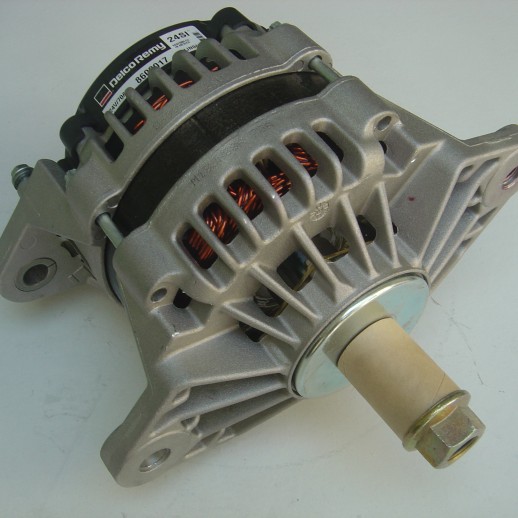

Delco Remy 24SI Heavy Duty Alternator - 160 Amps 12V / 70 Amps 24V
The 24SI brush style alternators are designed with dual internal fans which provide maximum cooling technology, improves the operating efficiency and durability of the unit.

Features

• Built-in protection from water and other contaminants with dual spacers and slingers
• Dual internal fans withstand higher engine temperatures
• Easy installation with one-wire connection

Specifications

• Performance Output:  160 Amps – 12 Volts / 70 Amps – 24 Volts
• Maximum Speed:  10,000 RPM Continuous / 12,000 RPM Intermittent
• Rotation:   Clockwise
• Temperature Limits:  Low  -40° F (-40°C )  High  221° F (105°C)
• Polarity:  Negative Ground
• Mounting:  SAE J180 standard, PAD mount

Dimensions

SAE J180 Mount

Pad Mount

Additional Information:

Performance Curve 12V
Performance Curve 24V
